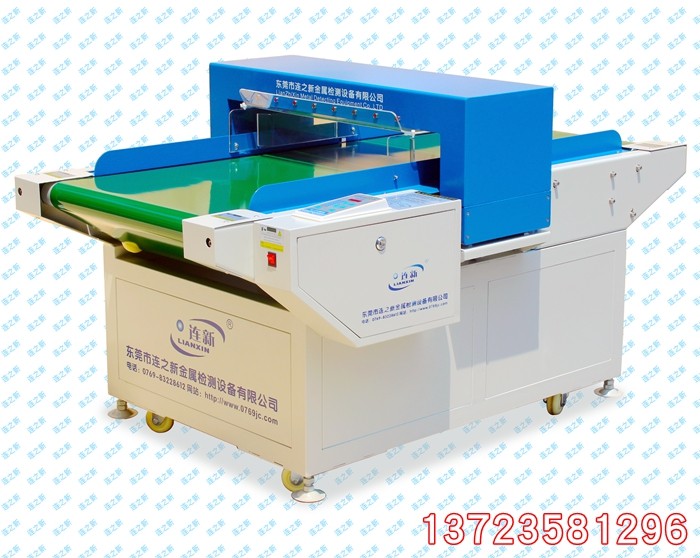

Antijamming square tube type needle detector machine

Model：JZQ-7300

The whole machine is made of 4 inch thickness high quality steel plate by electrostatic spraying technology, stable, durable and impact resistant.
JZQ-7300 anti interference square pipe type needle machine is a all steel type needle machine designed with anti-interference digital circuit and magnetic induction principle. It is mainly used to detect the iron magnetic metal, such as needle nail, sharp metal tool, needle, iron chip and so on. Can effectively eliminate: ceiling fan, needle car, sealing machine and other electromagnetic interference.

Tel：13723581296

Explanation

Applicable places:

Check the broken needle: casual shoes, sports shoes, insole, shoe upper, sole, cloth, non-woven fabric, embroidery, towel, bath towel, shoe material, gloves, toys, handicraft and other all export textiles inspection of broken needles.

Over the needle: metal buttons, metal zippers, day buckles, beads chain, brooches and other clothing bags metal accessories inspection machine.

Aluminum foil packaging: suitable for aluminum foil packaging of food metal foreign body inspection, if you need to detect all metal foreign objects, please select DLM-508 series products.

Functional characteristics:

The fuselage is made of all steel frame electrostatic spraying technology, with stable frame, strong ground strength, better anti-interference and impact resistance.

Super strong anti-interference computer chip integrated circuit, up and down two sets of 32 groups of full sensor, equivalent to the traditional dual probe needle machine;

All function keys are light touch type thin film switch, which avoids the defect that mechanical keys are easy to damage.

It has the function of position display, and the eight points show the exact position of the broken needle.

The printer can be installed.

It has counting function, and distinguishes between good quality and defective products (qualified, total, detection).

There are three kinds of alarm functions: voice, light and parking machine. Sensitivity is 1~10 level regulation.

An ad hoc protection circuit can be automatically shut down for ten minutes.

All functions are set before opening the main power supply and not before starting the motor.

It has B/C (excipient / finished product) mode switching function to adapt to different products.

When the broken needle and iron objects were detected, two sound and light modes of alarm were detected, and the machine was shut down and returned to the starting point, and then operated automatically again.

When the height of Longmen is 12cm, can the diameter of 1.0mm

MODEL	JZQ-7300
Detection method	Magnetic induction type
Detection ability	≥FeΦ0.7mm	≥FeΦ0.8mm	≥FeΦ1.0mm	≥FeΦ1.2mm
Detection hight	100mm	120mm	150mm	200mm
Detection width	600mm
Detection adjustment	Level 1-10 is adjustable, computer keys integrated controller
Alarm method	Since the launch of sound and light alarm stop back and 。
Power supply	Ac220V 50-60Hz。
Pated output	100W 。
Dunension	L1650×W1050×H900。
Weight	220~250KG。
